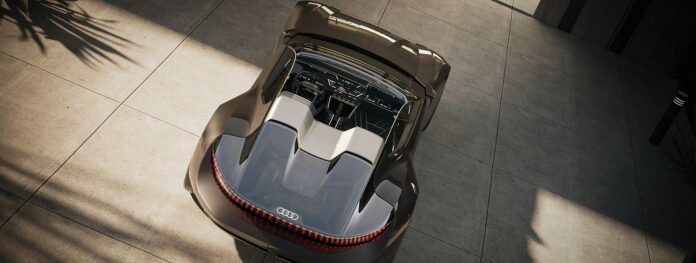

The Audi skysphere concept was designed for two different driving experiences: a grand touring experience and a sports experience. Electric motors and a sophisticated mechanism with body and frame components that slide into one another make it possible to vary the wheelbase itself and the exterior length of the car by 250 millimeters. At the same time, the vehicle’s ground clearance is adjusted by 10 millimeters to enhance comfort and driving dynamics.
Audi skysphere:
Inside Audi Design Loft Malibu:
With the touch of button, the driver can take advantage of their freedom and choose their own driving experience– either they pilot their 4.94-meter-long e-roadster themselves in “Sports” mode with a reduced wheelbase, while the rear-wheel steering ensures that the vehicle remains extremely agile despite its dimensions. Or they can choose to be chauffeured around in a 5.19-meter GT in the autonomous “Grand Touring” driving mode while enjoying the sky and the scenery, maximum legroom, and the services offered by a seamlessly integrated digital ecosystem.
In this mode, the steering wheel and pedals move into an invisible area; the feeling of space in the concept car opens up completely new realms of possibility for such a sporty convertible. Meanwhile, the Audi skysphere automatically keeps an eye on the road and traffic with its sensor system and drives the occupants safely to their destination.
The Audi skysphere concept will make its public debut on August 13, 2021, as part of Monterey Car Week – on the legendary fairways of the Pebble Beach golf course. This is because the concept car was conceived and designed at the Audi Design Studio in Malibu, just a stone’s throw away from the Pacific Coast Highway, the legendary coastal road that connects the suburbs of Los Angeles with northern California. Studio manager Gael Buzyn and his team are the creative minds behind the project. A legendary classic model from the company’s own history – the Horch 853 roadster – served as the inspiration for the new groundbreaking model.
But the visual inspiration from its predecessor is limited to the concept car’s dimensions and typical proportions with a rather compact cabin and long front end. A look under the hood of the Horch reveals an imposing straight-eight engine with a displacement of 5 liters. The Audi skysphere, on the other hand, mainly has electric drive components between the front axle and the windshield, such as the charger and the DC/DC converter, plus the actuators and electronic and mechanical components for the adaptive wheelbase. It also features a spacious trunk filled with two golf bags specially designed for the concept car.
The Audi skysphere’s battery modules are primarily positioned behind the cabin. The battery’s capacity is expected to be more than 80 kWh, giving the car a range of more than 500 kilometers according to the WLTP standard, at least in the economical GT mode.
The vehicle features double wishbone axles in the front and the rear. The upper and lower wishbones are forged or cast from aluminum. Steering takes place via a steer-by-wire system that controls both the front and the rear wheels. Because the system is not mechanically connected to the front axle, the driver can select different steering ratios and steering settings – all at the touch of a button. This allows the steering to be adjusted from extremely direct to comfortable, but also from high self-aligning forces to minimal self-aligning forces, for example when parking. The rear-axle steering and adaptive wheelbase also contribute to the car’s small turning radius. Individual chambers can be deactivated for a more sporty ride with fast acceleration.
When it comes to their footprint – 5.23 meters in length versus 5.19; a width of 1.85 versus 2.00 meters – it is easy to see the similarity between the legendary Horch 853 convertible and the Audi skysphere. A striking difference, on the other hand, can be found in their height – the legendary Horch, with its iconic design, towered up to 1.77 meters depending on the body shape, while its autonomous descendant, the Audi skysphere, ducks down to the road in Sport mode at 1.23 meters flat, with an optimized center of gravity and aerodynamics.
The front end – although no longer serving as a radiator grill – clearly features the brand’s typical Singleframe and the three-dimensionally designed, illuminated emblem with the four rings. The entire Singleframe and also the adjacent surfaces on the sides are designed with white LED elements to literally act as a stage for visual effects – both functional effects as well as moving welcome sequences when the vehicle is opened and closed.
Gentle dimming and a structured, rhythmically pulsating light produce an elegant effect. The daytime running lights in the side front sections, in turn, give the lighting units a resolute, focused “gaze.” If the wheelbase is changed, the LEDs in the front and rear display a specially composed dynamic sequence.
The rear end is also dominated by a digitally controlled LED surface that extends across the entire width of the vehicle. Countless red LEDs are scattered like rubies across the vertical rear surface. Reflections create dynamic lighting and shadow effects when the lighting units are switched on and off.
Upon changing the wheelbase and thus the operating mode from GT to Sport, the light signature also changes and sends a clear indication of the changed character of the Audi skysphere concept, particularly in the area around the Singleframe.
