Canon announces new lightweight wide-angle lens for mirrorless cameras

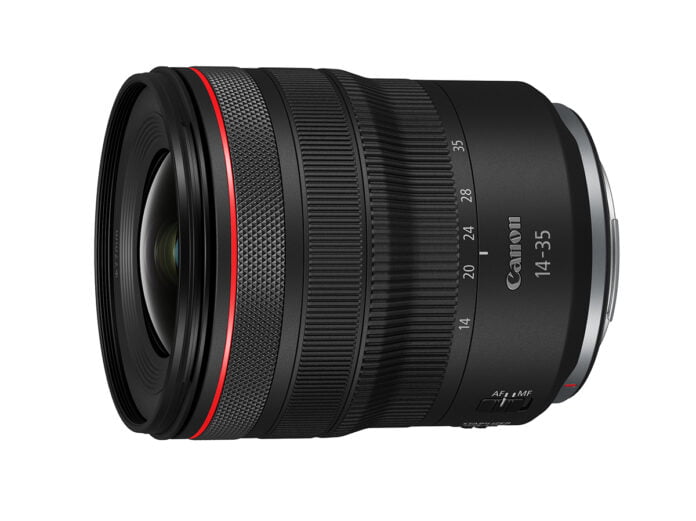

Canon today announced the RF14-35mm F4 L IS USM lens. The new wide-angle lens is designed for use within the expanding family of EOS R full-frame mirrorless cameras, including the upcoming EOS R3.  The Canon RF 14-35mm F4 L IS USM lens features f/4 aperture, L-Series optical construction — highlighted by three UD-glass elements, and three Aspherical elements — and lens coatings, including Sub-wavelength Structure Coating (SWC) and Air Sphere Coating (ASC).

Key features

• 77mm screw-in filters
• Compact design — Approximately 1.2 lbs. in weight
• Optical Image Stabilizer with up to 5.5 stopsi of shake correction
• Minimum focusing of 7.9 inches at all focal lengths and a maximum magnification of 0.38x at 35mm zoom setting.
• High speed, smooth and quiet autofocus with Canon’s Nano USM
• Control Ring for direct setting changes of aperture, shutter speed, ISO speed and exposure compensation.
• Up to 7 stopsⁱⁱ of shake correction when paired with Canon EOS R series cameras that feature In-Body Image Stabilizer (IBIS).

ⁱⁱ Based on CIPA (Camera & Imaging Products Associations) standards. Testing performed at focal length of 35mm, using the EOS R5 camera.

A Modulation Transfer Function (MTF) chart measures a lens’ expected optical performance at the center of the picture area and measures repeatedly along the diagonal line, further and further toward the corners of the image. The higher a curve is shown on the chart, the better the lens is performing in the area the chart is measuring. As a curve moves from left to right, it displays the lens’ results from center towards the corners.

Technical Specifications

Focal Length

14-35mm

Maximum and Minimum Aperture

F4-F22 (at all zoom settings)

Lens Mount Type

RF Mount; Metal Mount

Minimum Focusing Distance

7.9 in. (0.2m), at all zoom settings

Maximum Magnification

0.38x, at 35mm zoom setting

• Fill frame with subject approx. 3.7 x 2.5 inches / 94 x 63mm in size, at 35mm zoom position

Angle of View (Diagonal)

114°00′ – 63°00′

Lens Construction

16 elements in 12 groups

Special Elements

Three UD-glass elements, three Aspherical elements

• Includes one UD Aspherical lens element

Lens Coating

• Canon SSC (Super Spectra Coating)

• Canon SWC (Sub-wavelength Structure Coating)

• Canon ASC (Air Sphere Coating)

• Fluorine coating on front surface of front element

Filter Size Diameter

Ø77mm

Aperture Blades

9; circular shape

Lens Switches

AF/MF switch, Stabilizer ON/OFF switch

Dust/Water Resistance

Weather-resistant seals at lens mount, switches, zoom ring, focus ring, and Control Ring

Focusing System

Nano USM; rear focusing system

Dual Pixel CMOS AF Coverage

EOS R5, R6 – approx. 100% horizontal and vertical

EOS R, RP – approx. 88% (horizontal) x 100% (vertical)

Full-time Manual Focusing

Yes (One-Shot AF only)

Control Ring

Yes

• Click-stops provided (60 clicks/full revolution)

• Click stops can be removed by Canon service facility, for a service fee.

IS Mode Selection

None (automatic panning detection provided)

Optical Image Stabilization

Provided

• 5.5 stops optical IS correction with EOS R and RP

• Conforms to CIPA test standards, using EOS R

Coordinated IS (with EOS R5, R6)

Up to 7 stops Coordinated IS correction

• Conforms to CIPA test standards, using EOS R5

Maximum Outer Diameter x Length

Approx. ø3.3 in. x 3.9 in. (approx. ø84.1mm x 99.8mm)

• Minimum length at approx. 22mm zoom position

• Maximum length at 35mm zoom position – approx. 4.25 in. / 107.9mm

Weight

Approx. 1.2 lb. (approx. 19.0 oz. / 540g)

Accessories

Lens hood

Canon EW-83P (Bayonet-mount with lock, petal type) (Bundled)

Lens Cap

Canon E-77 II (center pinch-type) (Bundled)

Dust Cap

Canon Lens Dust Cap RF (Bundled)

Lens Case

Canon Lens Case LP1219 (Bundled)

RF Tele Extenders

Not compatible

EF Extension Tubes

Not compatible

Close-up Lenses

Canon 250D – not compatible (no 77mm size)

Canon 500D – 77mm compatible

• Close-up magnification range 0.07x–0.41x

Canon Gelatin Filter Holder IV

Compatible (77mm adapter required)

• Usable number of hoods – 1

The Canon RF14-35mm F4 L IS USM lens is scheduled to be available in August 2021 for an estimated retail price of $1,699.00
